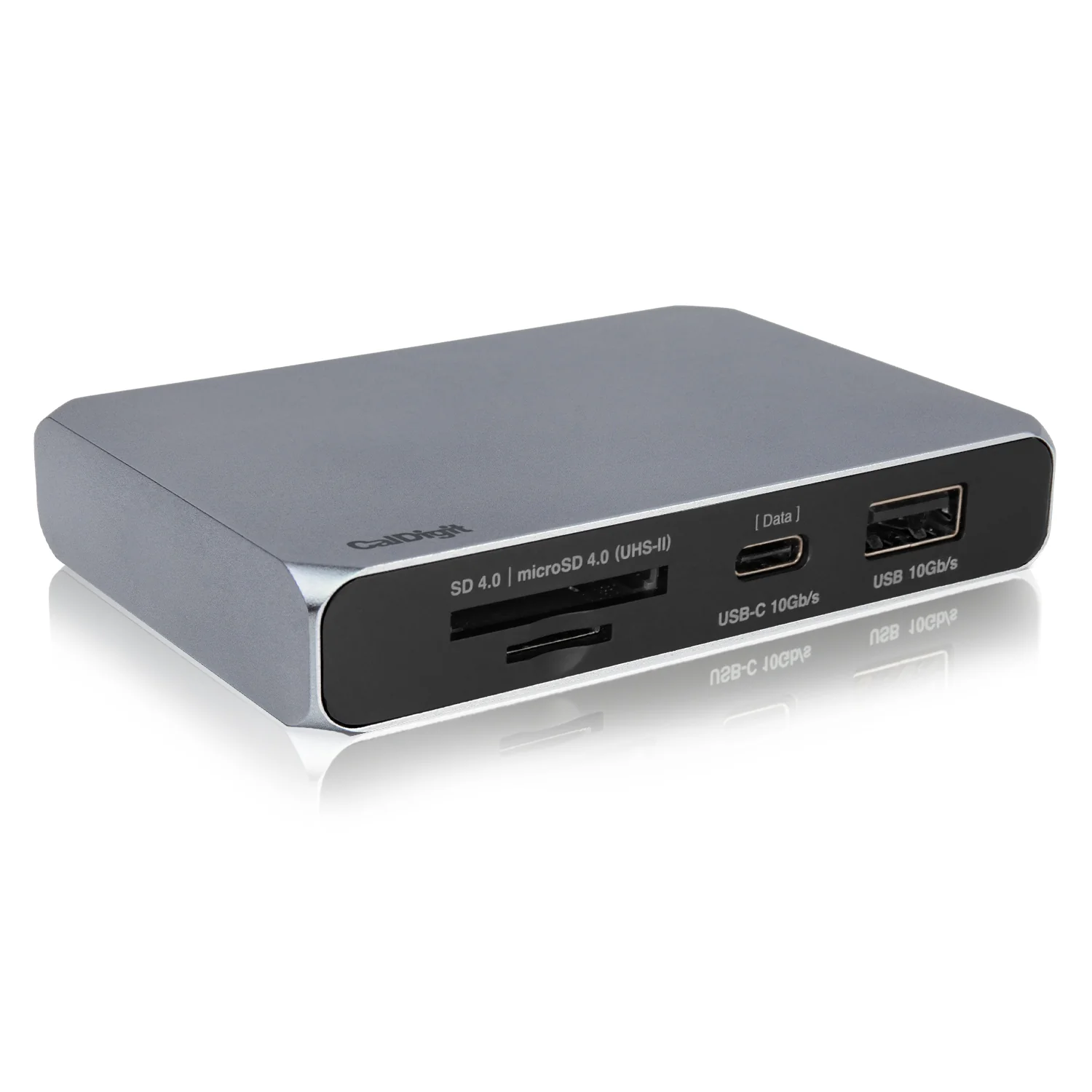

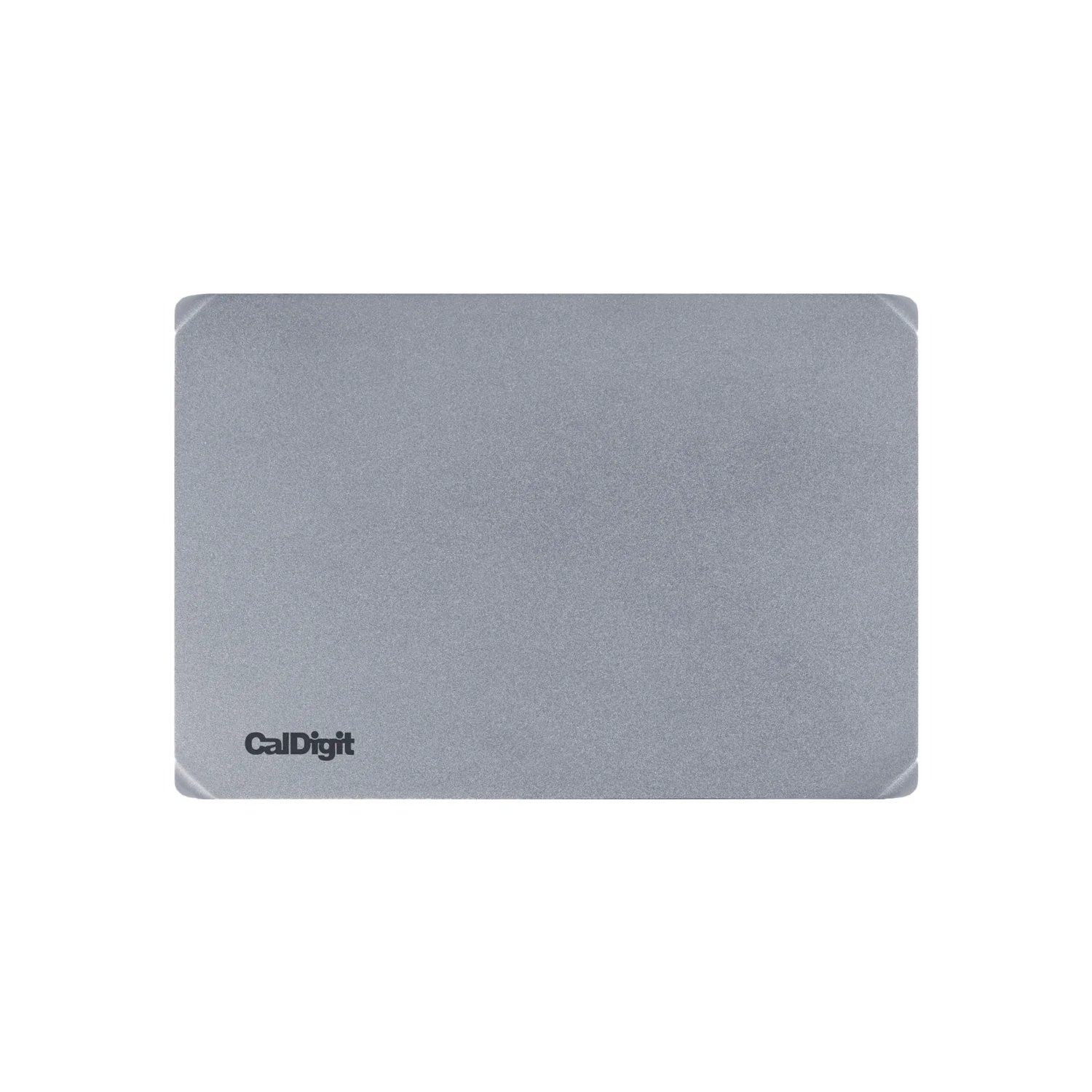

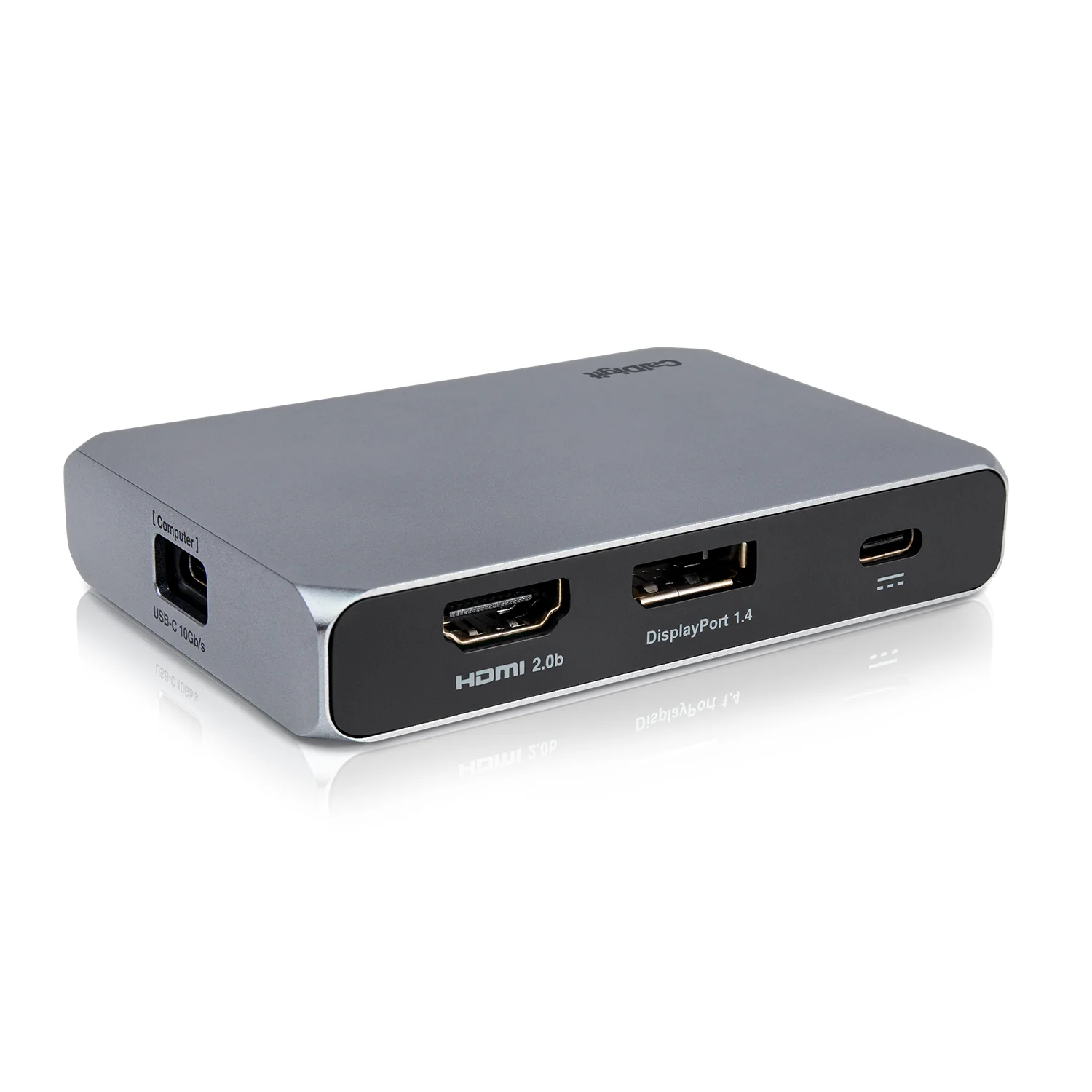

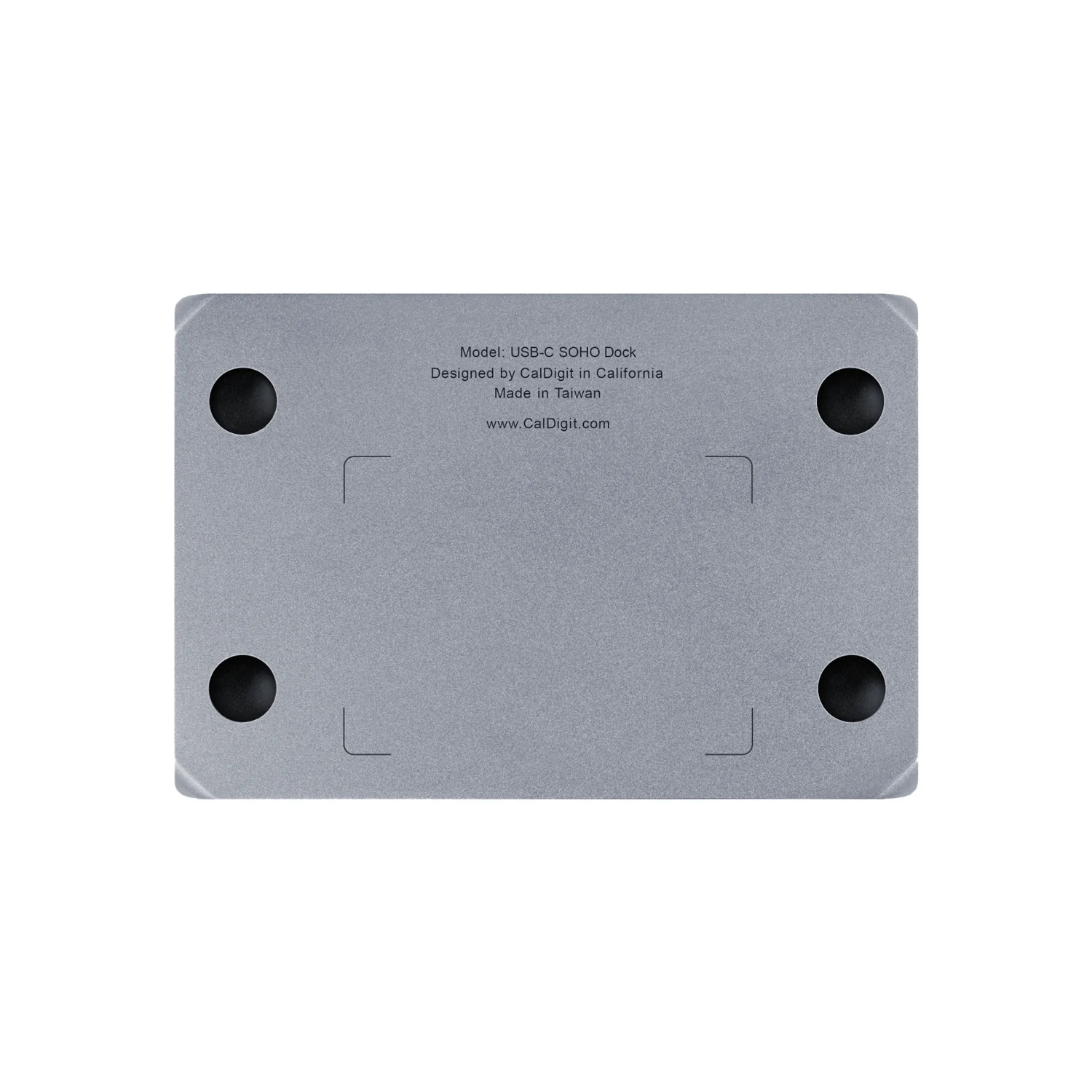

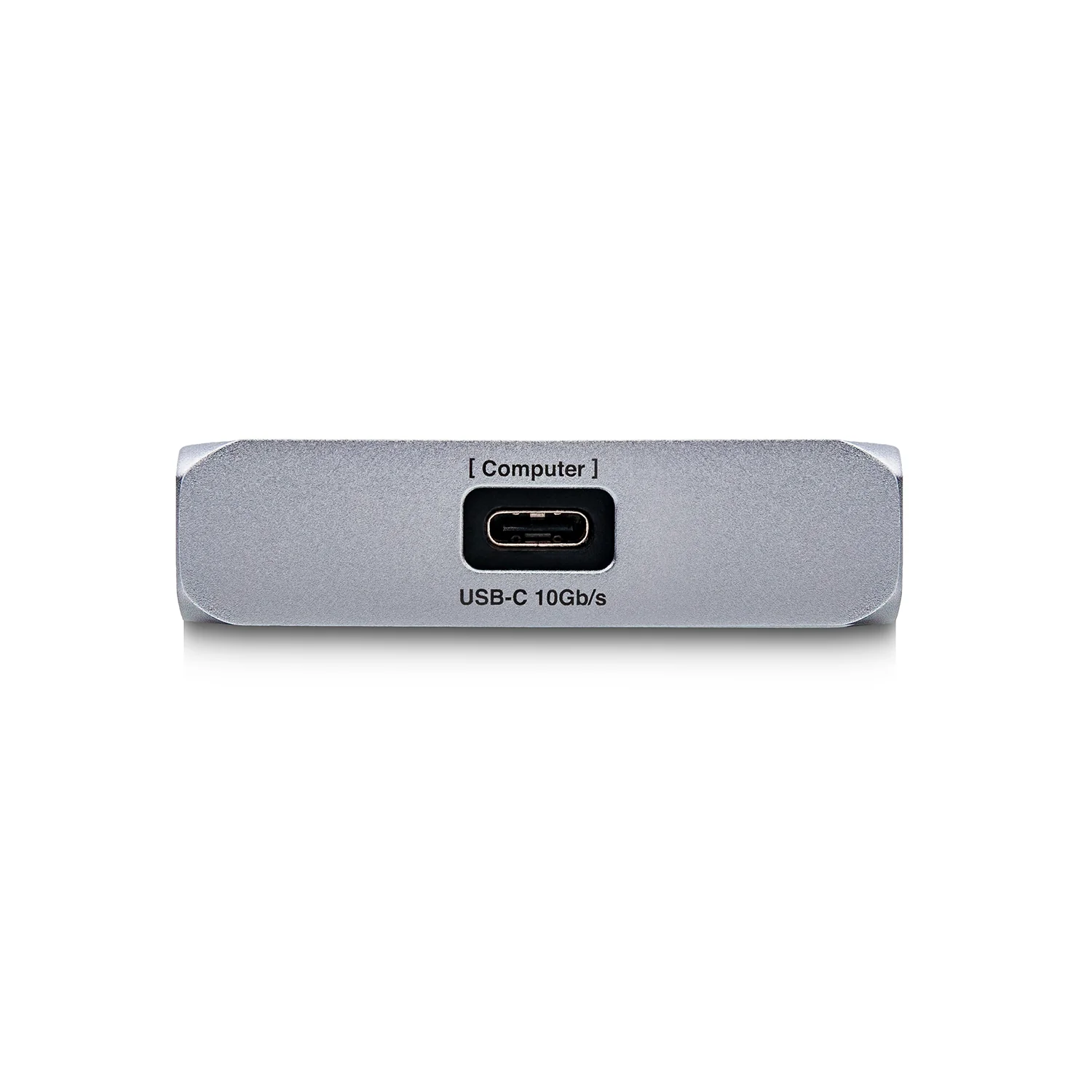

OPEN BOX | USB-C SOHO Dock

Open box units may come in either original or frustration free packaging.  All units tested and validated to factory specifications.  1 year warranty.

The SOHO Dock has the ability to be bus-powered, making it an ideal solution for users that need to expand their connectivity on the road. In addition, the SOHO Dock’s dual video connectors and pass-through charging capability make it an ideal desktop docking solution.

Technical Specifications

Dimensions and Weight
Height : 0.75 inches (19.0 mm)
Width : 2.53 inches (64.3 mm)
Depth : 3.66 inches (93.0 mm)
Weight: 0.19 lbs (0.09 kgs)

Interface
1 x USB-C Power Delivery
1 x USB-C (10Gb/s) Host Port
1 x USB-C (10Gb/s) Data Port
1 x USB-A (10Gb/s) Data Port
1 x HDMI 2.0b
1 x DisplayPort 1.4
1 x SD 4.0 UHS-II Card Reader
1 x microSD 4.0 UHS-II Card Reader

Power
Type-C Powered
Type-C Host Charging (up to 90W when 100W Type-C charger is connected)

System Requirements
USB-C iPhone 15
USB-C Computer
Thunderbolt 3 Computer
macOS 10.13.6 or later
Windows 10 or later
iPadOS 13.6 or later

In the box
1 x USB-C Gen.2 SOHO Dock
1 x USB-C Cable (0.5m)

Warranty
1 Years Limited Warranty

*Type-C charging cable and charger are not included

*Full dock functionality depends on the host computer’s capabilities. Please contact your host device manufacturer to confirm external display, host charging, and USB device support.

*Please refer to SOHO Dock charging capability table for more information.
   https://www.caldigit.com/usb-c-soho-dock-laptop-charging-capability/

For more information, please visit USB-C SOHO Dock product page.

Windows Firmware Updater:

Video Firmware Updater v1.2.5 *Last updated on 02/17/21. To improve 4K monitor compatiblity when connecting to Apple M1-based Macs.
Charging Firmware Updater v1.2.6 *Last updated on 02/20/21. To improve the laptop charging compatiblity when using with 3rd party Type-C charger that has PPS enabled
